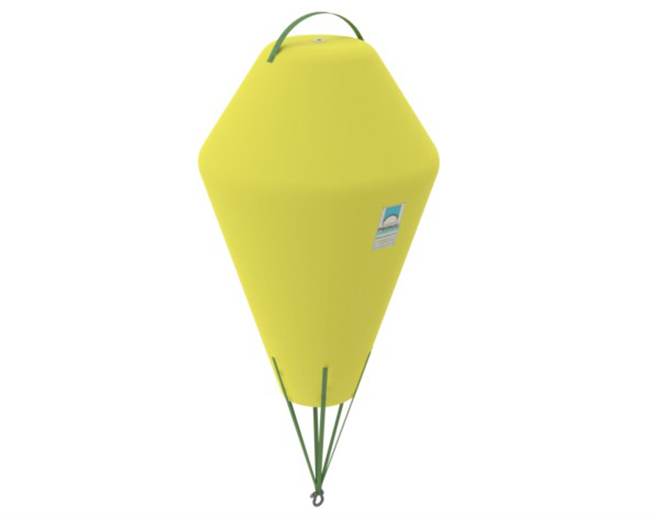

PSM underwater parachutes
PSM underwater parachutes are designed to provide extra buoyancy and for raising or lifting loads to the surface. They can be used at any depth for:
- stabilizing underwater loads

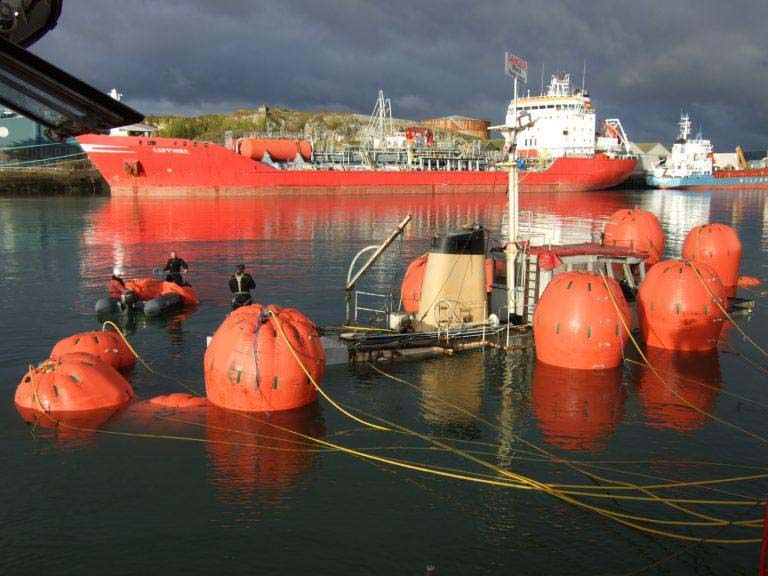

- refloating objects
- sea rescue operations

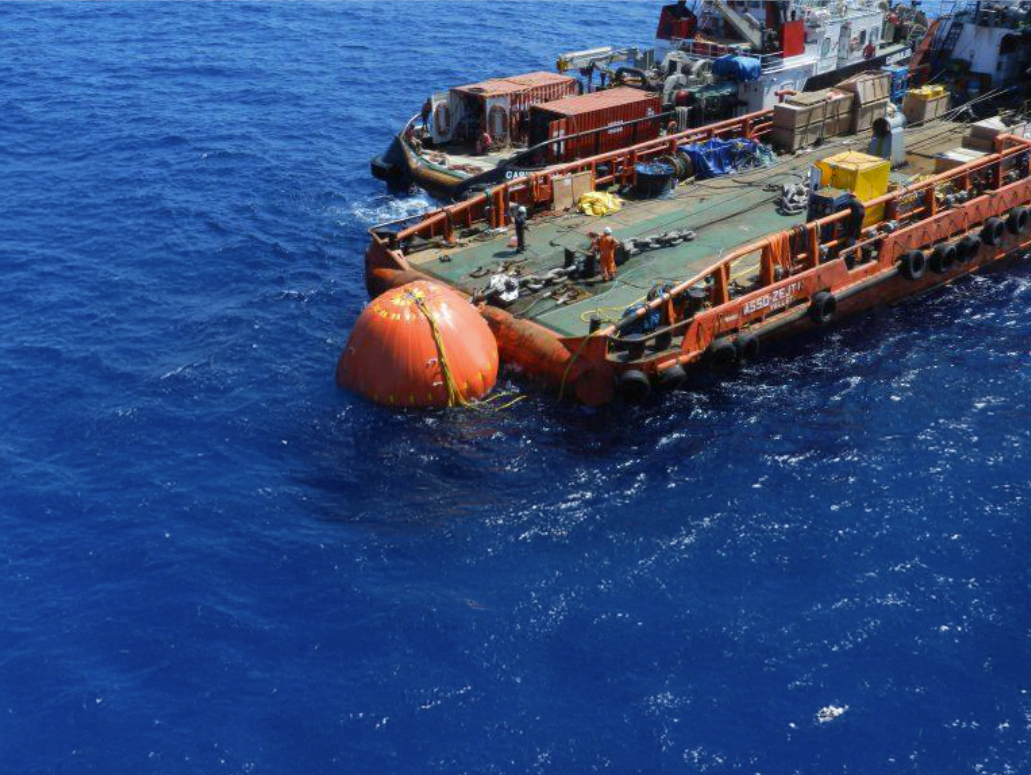

- securing loads during offshore maintenance or installation operations
- providing extra buoyancy in cooling ponds.
Their strength guarantees the efficiency and success of your operation. These inflatable marine lifting bags can also be coupled to increase the potential lifting capacity.
Advantages
Reliability
- Ranges from 100kg to 5 tons
- Can be coupled together
Safety
- Tensile strength of straps resists up to 4500 daN depending on the model
Handling
- Can be deployed easily and rapidly
Detailed information
- Material: PVC or PU coated fabric,
- Technique: hot vulcanization in a vacuum autoclave,
- Lifting capacity: from 100 to 5000 kg,
- Inflation: by air,
- Temperature resistance:
- PVC coated fabric -20°C/+50°C,
- PU coated fabric -25°C/ +100°C,
- Additional accessories:
- Screw lyre shackles,
- Link connector,
- 1/4 turn release valve,
- Handle,
- Straps (number dependent on the model).
Technical informations
| PSM 1000 | 1700 | 2300 | 1250 | 450 | 1.15 | 4 |
| PSM 3000 | 2750 | 3350 | 1700 | 550 | 3.41 | 9 |
| PSM 5000 | 3200 | 3600 | 2100 | 600 | 5.76 | 12 |
You can not find your dimensions
Our design department employs the best project leaders and designers and will be pleased to develop and create a tailor-made product specially for your unique project.
tailored
Composition / Advice
Care during use
Lay a mat on the floor before handling the parachute. Avoid any contact with surfaces that are excessively abrasive or which have cutting edges. Never walk on the parachute. (see the manual).
Maintenance tips
After use, clean the outside and the inside of the product with soapy water, rinse and dry. Never use a detergent or aggressive product. (see the manual).
Storage advice
Store away from light, damp and temperature variations, in its original case.
Standards / regulations
Guaranty
1 year against all manufacturing defects
Standards
Please contact us
