High-Pressure Air Lifting Bag - CLT
The high-pressure air lifting bag, lifts, wedges and pushes heavy loads mainly horizontally. However, its actions can also be performed vertically, for example for pipe wedging. Depending on the model, the lifting capacity of this pneumatic cushion ranges from 1 to 65 tons. The lifting stroke can be up to 500 mm high.

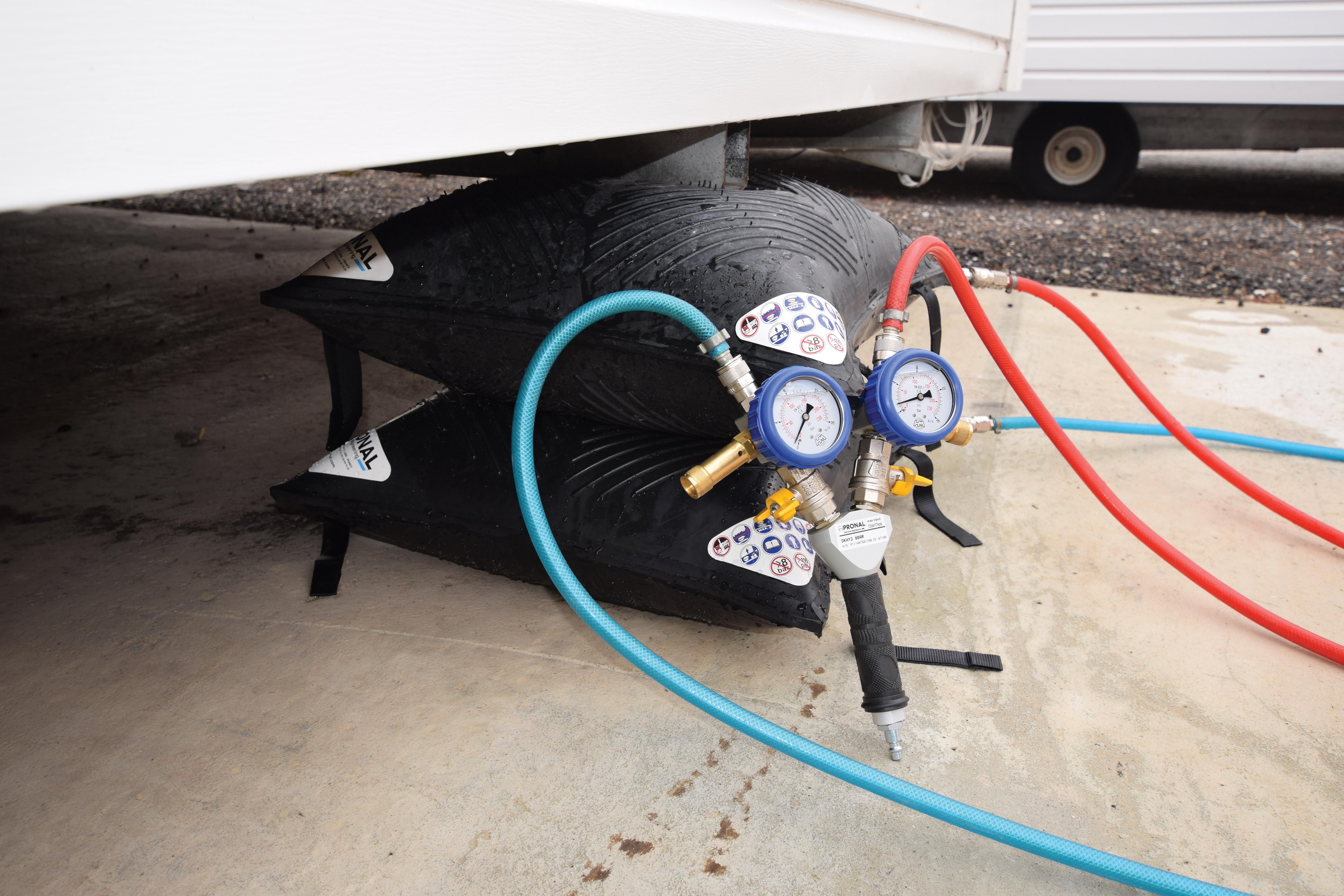

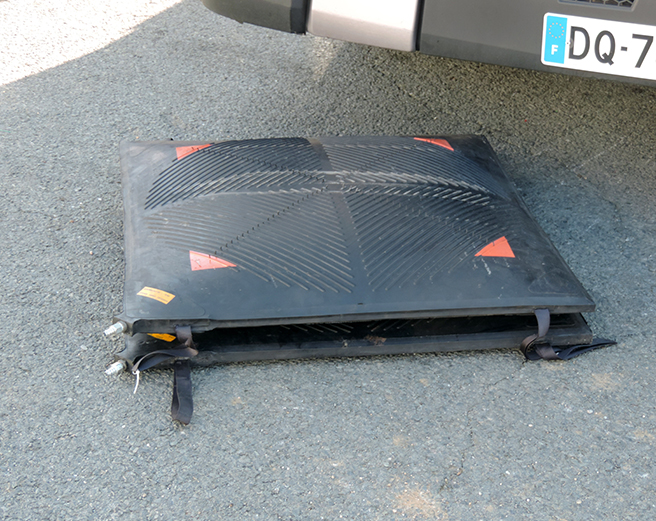

The air lifting bag fits easily into small spaces, thanks to its empty thickness of only 25 mm. Also, its remote control avoids the operator to be too close to the lifting area. This inflation system makes the CLT high-pressure air lifting bag an essential tool for safe working.
Manufactured from aramid nappage coated with elastomer and assembled by vulcanization, the range of lifting bags is used in addition to or in replacement of the traditional means of lifting.

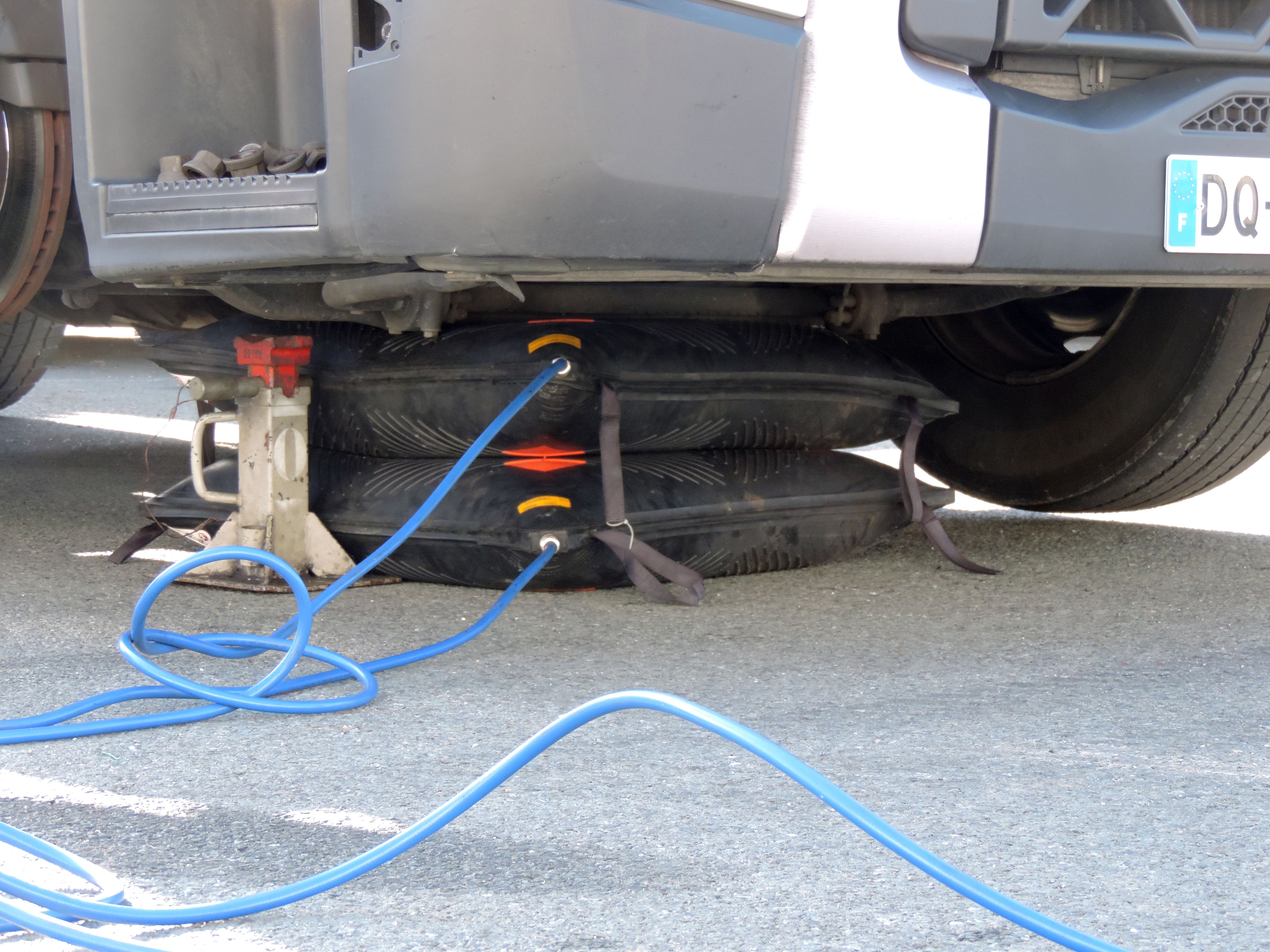

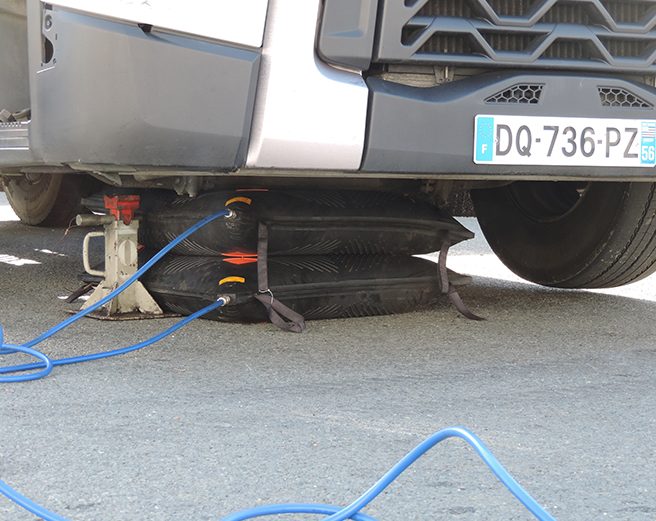

Unlike the hydraulic jack, the pneumatic lifting bag has a larger contact surface with the load to be lifted. Thus, the stability is perfect and the thrust is uniformly distributed.Thanks to its low weight and thickness, we can find them in many sectors of activity such as vehicle recovery, handling, quarries or emergency services. Among this range, there are also low pressure air lifting bags and stack bags.
Advantages
Use
- Wide and solid lifting surface
- Stacking in 3s
- Adapt to all air supplies
Safety
- Non-slip surface
- Smooth, jerk-free lifting
- Compliance with standard NF EN 13731
Handling

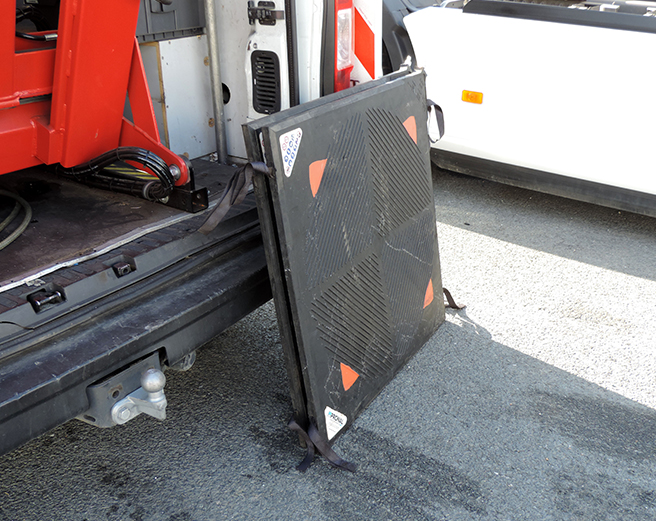

- Lightweight and small size
- Handling straps
- Thin
Detailed information
- Material: Aramid envelope, elastomer coated
- Manufacturing technique: hot vulcanisation in a vacuum autoclave
- Dimensions: 100 x 100 mm to 920 x 920 mm
- Inflation: air
- Temperature resistance: -20 to 60°C
- Max. inflation pressure: 8 bar
- Test pressure: 12 bar
- Max. thickness: 25 mm
- Lifting travel: 90 to 515 mm
- Safety factor: 4
Technical informations
| Ref. | Code | Dimensions | Weight (kg) | Max. lifting capacity (T) | Max. lifting height (mm) | Air volume (L) |
|---|---|---|---|---|---|---|
| CLT 1 | 058156 | 150 x 150 | 0.6 | 1 | 90 | 5 |
| CLT 3 | 058157 | 200 x 200 | 1 | 3 | 115 | 12 |
| CLT 6 | 058158 | 300 x 300 | 3 | 6 | 175 | 41 |
| CLT 10 | 058159 | 380 x 380 | 4 | 10 | 220 | 84 |
| CLT 14 | 058160 | 420 x 420 | 5 | 14 | 245 | 113 |
| CLT 19 | 058161 | 510 x 510 | 8 | 19 | 295 | 203 |
| CLT 24L | 058163 | 1000 x 320 | 9 | 24 | 215 | 227 |
| CLT 24 | 058162 | 560 x 560 | 9 | 24 | 320 | 269 |
| CLT 30 | 058164 | 620 x 620 | 10 | 30 | 345 | 365 |
| CLT 43 | 058165 | 750 x 750 | 15 | 43 | 410 | 646 |
| CLT 54 | 058166 | 840 x 840 | 19 | 54 | 465 | 908 |
| CLT 65 | 058167 | 920 x 920 | 22 | 65 | 515 | 1190 |
You can not find your dimensions
Our design department employs the best project leaders and designers and will be pleased to develop and create a tailor-made product specially for your unique project.
