Hydraulic oil separator - EXP

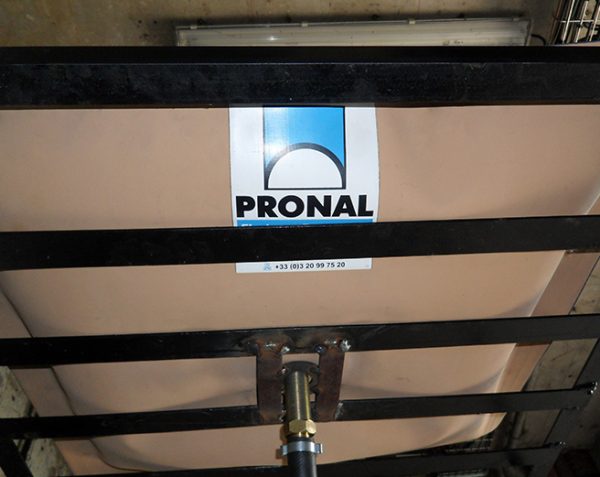

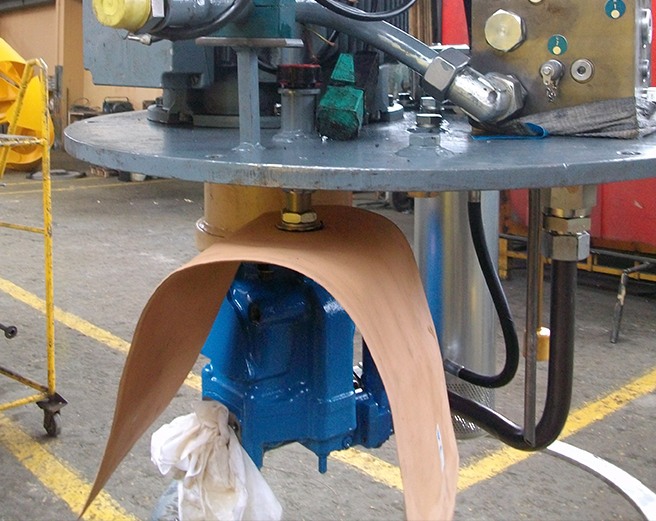

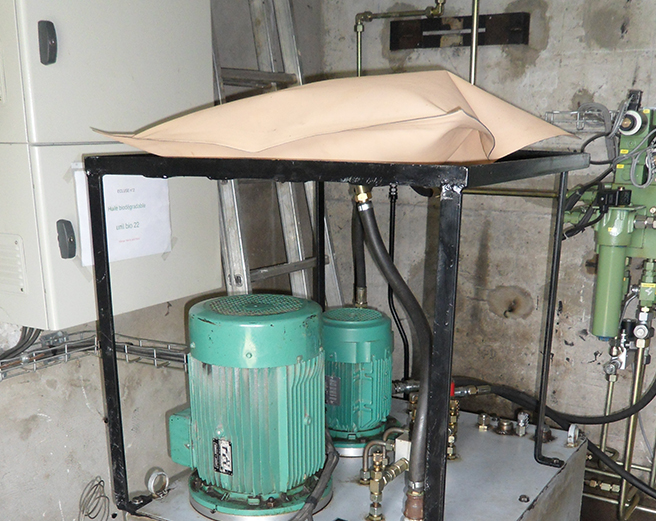

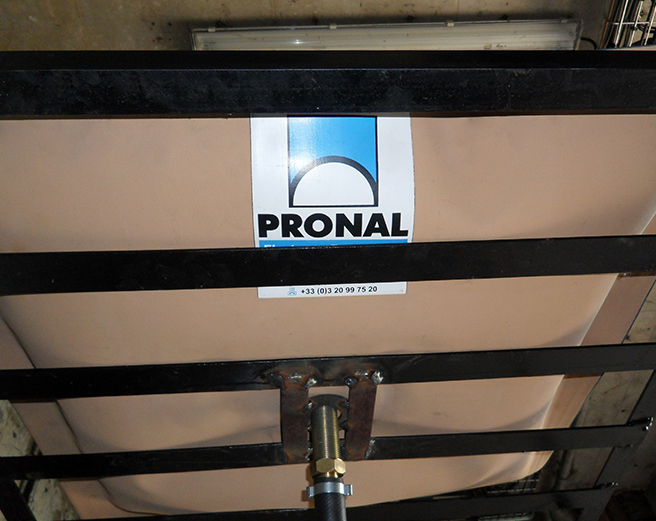

The EXP hydraulic oil separator allows the separation of hydraulic fluids contained in a tank. It looks like a synthetic rubber bladder that is perfectly deformable. It can be placed either inside or outside the tank, depending on the needs. Real auxiliary tanks, they can be made flat or shaped.
The product will compensate for volume variations. These variations can deteriorate the characteristics of the oil and the hydraulic system components. The compensators are permanently installed within the system, making it autonomous, and require no maintenance.
This hydraulic oil separator allows:
- To avoid emulsion, air in the oil, condensation in the tanks, or pollution of the oil by dust
- To eliminate turbulence and the risk of leaks, whatever the orientation of the tank.
- The operation in water immersion
These hydraulic compensators are available as standard. However, they can also be custom-made according to the dimensions of your tanks and the volume to be compensated.
In addition, for the compensation of oils of more common preservatives, we find the STP rubber bag transformer.
Advantages
Reliability
- Compatible with a wide range of chemicals
- Reusable
Safety
- High mechanical resistance
- Perfectly sealed
- Keeps the oil safe from any outside contamination
Handling
- Quick and easy installation
- Made to measure
- No maintenance
Detailed information
- Material: polyurethane sheet or elastomer coated cloth
- Manufacturing technique: high frequency welding or vulcanisation
- Dimensions: standard and made to measure
- Inflation: air
- Temperature resistance: -20°C to +80°C
- Thickness: 2 to 10 mm
- Possible shapes: square, rectangular, circular, conical, cylindrical, cubic and parallelepiped.
- Material options: compatible with oils, water and foodstuffs
- Accessories:
- Mild or stainless steel insert
- Mild or stainless steel tubing
Technical informations
| Volume (L) | Cylindrical EXP (mm) | Square EXP (mm) | Middle Rectangle EXP (mm) | Long Rectangle EXP (mm) |
|---|---|---|---|---|
| 1 | Ø250 / Max height : 138 | 240x240x128 | 260x190x96 | 400x140x64 |
| 4 | Ø368 / Max height : 205 | 320x320x178 | 400x280x153 | 490x240x127 |
| 10 | Ø465 / Max height : 261 | 420x420x242 | 520x360x204 | 760x280x153 |
| 15 | Ø520 / Max height : 292 | 480x480x280 | 580x400x229 | 860x320x178 |
| 20 | Ø580 / Max height : 327 | 520x520x306 | 640x440x255 | 920x340x191 |
| 25 | Ø640 / Max height : 361 | 560x560x331 | 700x460x267 | 980x360x204 |
| 30 | Ø664 / Max height : 375 | 600x600x357 | 720x500x293 | 1060x390x217 |
| 40 | Ø706 / Max height : 399 | 660x660x395 | 800x540x318 | 1160x420x242 |
| 50 | Ø784 / Max height : 444 | 700x700x420 | 840x580x344 | 1260x440x255 |
| 60 | Ø810 / Max height : 459 | 740x740x446 | 900x620x369 | 1360x460x267 |
| 70 | Ø850 / Max height : 482 | 780x780x471 | 940x640x382 | 1460x480x280 |
You can not find your dimensions
Our design department employs the best project leaders and designers and will be pleased to develop and create a tailor-made product specially for your unique project.
