Low-pressure air lifting bag- CBP

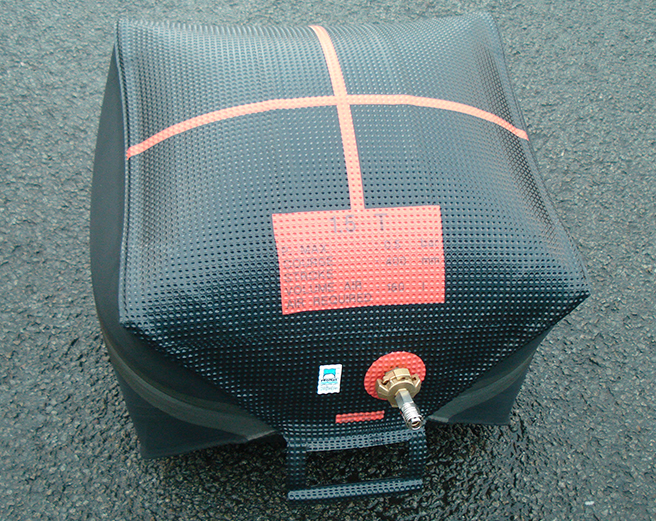

The CBP low-pressure air lifting bag has a parallelepipedic inflated shape. It allows to lift quickly and at great height any type of load from 1 to 5 tons.
Its dimensions of 25 mm when empty allow it to be installed in narrow passages. Moreover, this lifting system offers a significant lifting height, between 400 and 760 mm, depending on the dimensions.

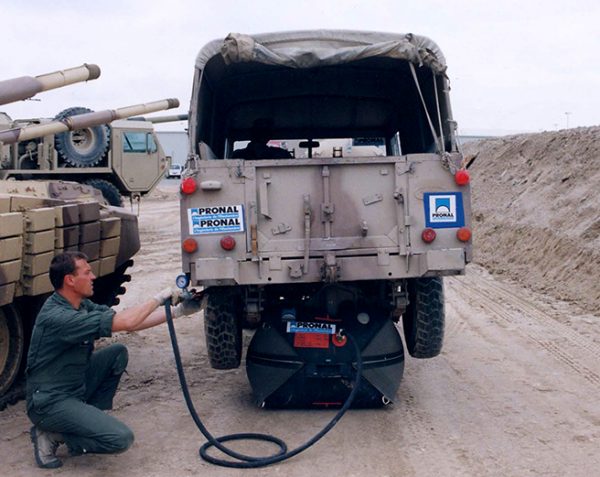

This low-pressure air lifting bag can be inflated from an air compressor, with a pressure of 0.5 bar. However, it can also be inflated from a vehicle exhaust outlet. Therefore, the system is completely autonomous. Many accessories are available to ensure the pressurization.
Its low weight, its handling handles and its designed markings facilitate the transport and the installation of the low pressure air lifting bag. For an even greater stroke, it is possible to superimpose cousins.

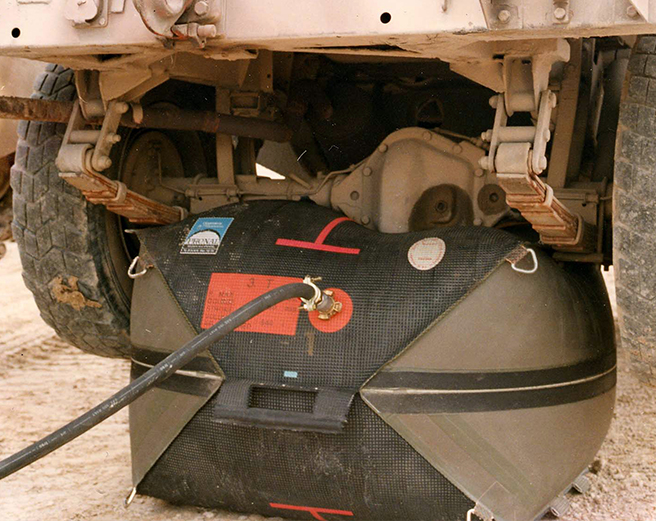

Assembled by hot vulcanization, it is resistant to many aggressions: abrasion, friction, nature of the ground,… Indeed, as a real pneumatic jack, the CBP is indispensable on sand, earth or mud. For example, it is an essential tool for removing mud from a vehicle.
In the range of inflatable lifting cushions dedicated to the pneumatic lifting of vehicles, there is also the stack bag or the high pressure air lifting bag.
Advantages
Use
- Stackable for 3 and 5 ton models

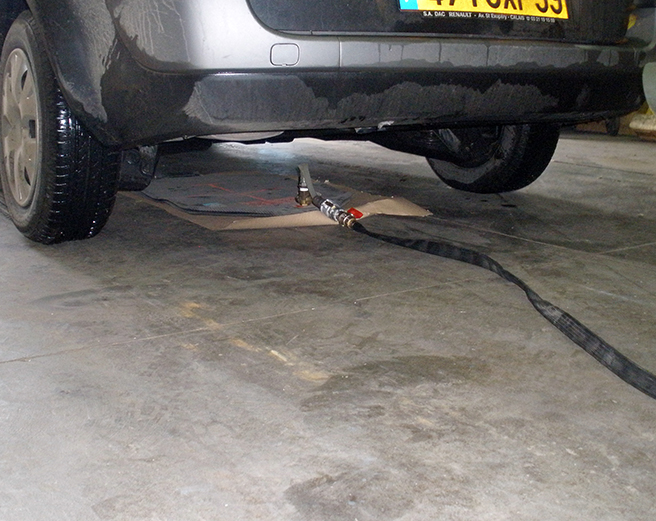

- Minimum insertion space of 25 mm
- Easy positioning thanks to their markings
Safety
- Safety factor of 3
- Non-slip surface
Handling
- Light and easy to carry
- Handling straps
- Small size
Detailed information
- Material: NPVC coated cloth
- Manufacturing technique: hot vulcanization in a vacuum autoclave
- Dimensions: 580 x 520 mm to 1120 x 910 mm
- Inflation: air
- Temperature resistance: -20 to 60 °C
- Max. inflation pressure: 0.5 bar
- Test pressure: 50 mbar
- Max. thickness: 25 mm
- Lifting travel: 400 to 760 mm
- Safety factor: 3
Technical informations
| Ref. | Dimensions (mm) | Deflated thickness (mm) | Weight (kg) | Max. lifting capacity (T) | Service pressure (bar) | Test pressure (bar) | Max. travel (mm) | Rated air volume (L) |
|---|---|---|---|---|---|---|---|---|
| CBP 1.5 | 520x580 | 25 | 5 | 1.5 | 0.50 | 0.75 | 400 | 120 |
| CBP 2 | 600x750 | 25 | 8 | 2.2 | 0.50 | 0.75 | 500 | 225 |
| CBP 3 | 700x860 | 25 | 10.5 | 3 | 0.50 | 0.75 | 600 | 361 |
| CBP 5 | 910x1120 | 25 | 18.7 | 5 | 0.50 | 0.75 | 760 | 774 |
